Glass Symmetry from Vectors#
This example shows how to identify symmetry (in a glassy system but this could be useful other places) by looking at the angles between 3 vectors in the diffraction pattern at some radial ring in k to identify groups of 3 vectors that are subtended by the same angle.
This is a very simple example with more detailed examples to come.
import pyxem as pxm
from scipy.ndimage import gaussian_filter
import matplotlib.pyplot as plt
import numpy as np

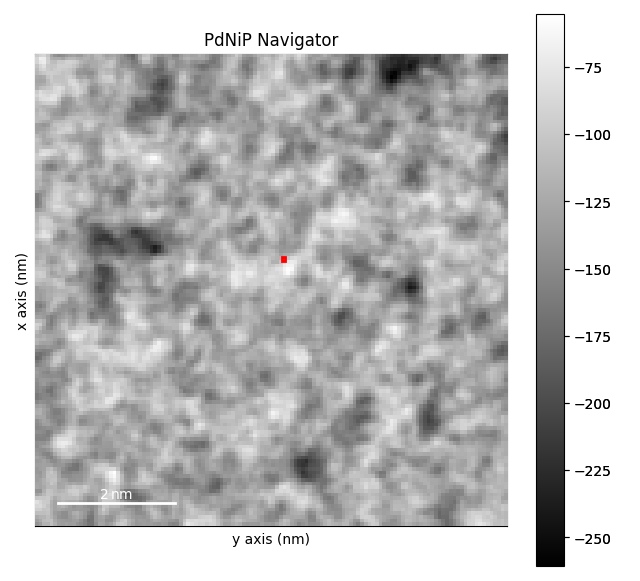

# First we load the data and do some basic processing
s = pxm.data.pdnip_glass(allow_download=True)
s.axes_manager.signal_axes[0].offset = -23.7
s.axes_manager.signal_axes[1].offset = -19.3
s.filter(gaussian_filter, sigma=(1, 1, 0, 0), inplace=True) # only in real space
s.template_match_disk(disk_r=5, subtract_min=False, inplace=True)
vectors = s.get_diffraction_vectors(threshold_abs=0.5, min_distance=3)
# Now we can convert to polar vectors
pol = vectors.to_polar()

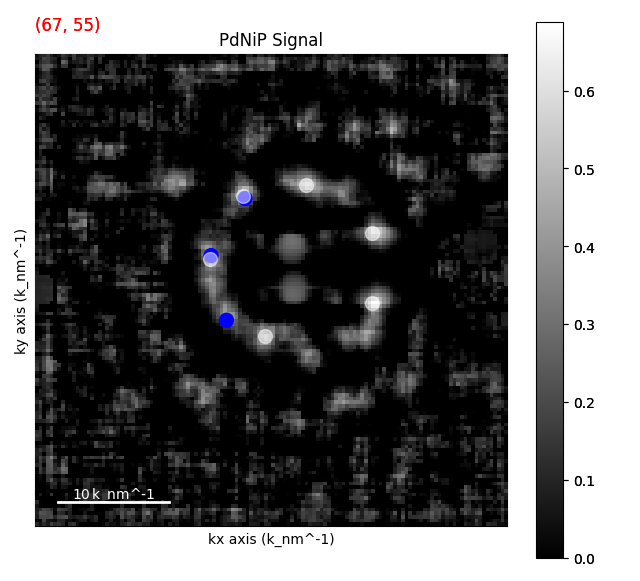

# This function gets the inscribed angle
# accept_threshold is the maximum difference between the two angles subtended by the 3 vectors
ins = pol.get_angles(min_angle=0.05, min_k=0.3, accept_threshold=0.1)
flat_vect = ins.flatten_diffraction_vectors()
fig, axs = plt.subplots()
axs.hist(flat_vect.ivec["delta phi"].data, bins=60, range=(0, 2 * np.pi / 3))
axs.set_xlabel("delta phi")
axs.set_xticks(
[0, np.pi / 5, np.pi / 4, 2 * np.pi / 5, np.pi / 2, np.pi / 3, 3 * np.pi / 5]
)
axs.set_xticklabels(
[
0,
r"$\frac{\pi}{5}$",
r"$\frac{\pi}{4}$",
r"$\frac{2\pi}{5}$",
r"$\frac{\pi}{2}$",
r"$\frac{\pi}{3}$",
r"$\frac{3\pi}{5}$",
]
)
